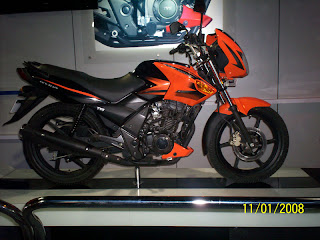

TVS Flame






The all-new 4 Stroke, 4 geared 125cc FLAME is the most innovatively designed offering from TVS designed to win over discerning customers with its futuristic styling and technology. The 3-Valve Engine comes with Controlled Combustion Variable Timing Intelligent (CC-VTi) technology.The styling of Flame is inspired by the Delta Wing design found in the latest fighter jets. Called “DeltaEdge”, it gives the bike a unique style while giving it superior aerodynamics. The FLAME boasts of several style statements including, DeltaEdge Headlamps, Sporty DeltaEdge Exhaust, Embedded DeltaEdge Trafficators, LCD Digital Speedometer and a Dual Lens Tail Lamp.Developed by world class R&D at TVS MOTOR, in collaboration with AVL, Austria, the CC-VTi technology features 2 different intake ports called Swirl port & Power port.Swirl port creates swirl motion of air-fuel mixture in the combustion chamber. This Swirl motion helps in efficient combustion of petrol.

The TVS Apache has a wheelbase of 1300 mm
■The Bajaj Pulsar has a wheelbase of 1320 mm
■The TVS Flame CCV-Ti has a wheelbase of 1320 mm..!!
■The Wheelbase of the Flame is bigger than the Apache and as big as the Bajaj Pulsar..!!




SPECIFICATIONS
Engine:
* Engine (CC): 124.8 CC, 4 Stroke with CCV-Ti
* Max Power: 10.5 bhp @ 8250 rpm
* Max Torque: 10 Nm @ 6250 rpm
* Gear Box: 4 Speed
* Bore X Stroke: 54.5 X 53.5
* Carburettor Type: VM Type- Ucal
__________
Wheels/Tyres:
* Wheels Type: Mag alloys
* Front Tyre: 90 X 90 X 17
* Rear Tyre: 90 X 90 X 18
* Brake - Front: 230 mm disc
* Brake - Rear: 130 mm drum
__________
Supension:
* Front: Telescopic
* Rear: 5 Step Adjustable, Gas Filled
__________
Dimensions:
* Wheelbase: 1320 mm
* Overall Height: 1070 mm
* Overall Length: 2030 mm
* Overall Width: 760 mm
* Ground Clearance: 165 mm
* Kerb Weight: 121 Kg
* Fuel Tank: 8.0 litre
* Fuel Reserve: 2.0 litre
__________
Electricals:
* Headlamp: 12V 35/35 W Halogen
* Tail Lamp: 12V 21W/5W
* Turn Indicators: 12V 16 W
* Battery: 12V- 5 Ah
* Ignition System: IDI System
